Bullet Point 1｜Core Performance & Transmission Advantage
Single-port 10/100Mbps Ethernet PHY Transceiver compliant with IEEE 802.3 standard, supports 10BASE-T & 100BASE-TX signal transmission. Realize stable error-free communication up to 137m Cat5 cable with adaptive equalization and baseline wander compensation; built-in Auto-MDIX function simplifies wiring layout without extra crossover cable design.
Bullet Point 2｜Rich Interface & Convenient Debug Design
Dual MII and configurable RMII Rev.1.2 MAC interfaces, matched with MDC/MDIO serial management interface to compatible with STM32, FPGA and other main control chips. Equipped with 10/100Mbps BIST built-in self-test and single-register full PHY status reading, greatly shorten product debugging cycle; programmable LED indicators display link status and network speed intuitively.
Bullet Point 3｜High Reliability Anti-interference & Wide Temperature Operation
3.3V low operating voltage with low power 0.18μm CMOS technology, operating temperature range -40℃~+85℃ to adapt to harsh industrial environment. Over 4kV HBM ESD protection provides strong anti-static interference ability, ensuring long-term stable operation of network equipment.
Bullet Point 4｜Miniaturized Package & Space-saving Layout

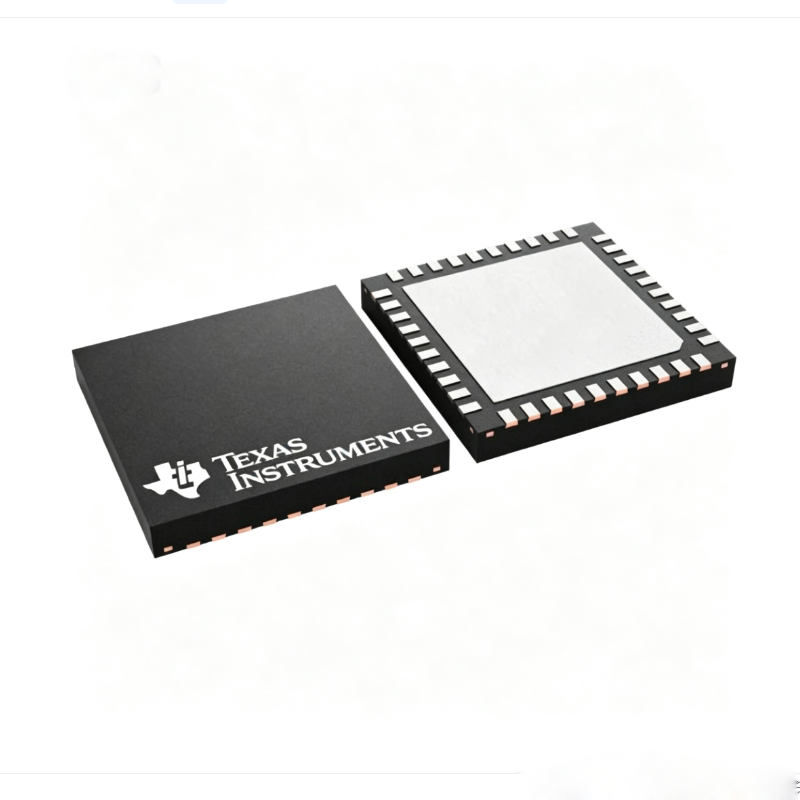

Adopts compact 6mm×6mm WQFN40 small-size package, perfectly fits space-limited embedded circuit boards. Integrated complete TP-PMD physical sublayer, reduce peripheral peripheral discrete components, effectively save PCB layout space and lower overall material cost.
Bullet Point 5｜Wide Industrial Application Scenarios
Ideal for various embedded network hardware: industrial control equipment, PLC gateway, IP camera board, factory & building automation system, wireless base station, transportation test instruments and other network peripheral modules.
